類別：
綠屋頂
|
|
|
作品名稱：
Virginia Commonwealth University (VCU) Pollak Building |
|
發佈日期：
2015-11-25 |
|
作品說明：
Project Description & Details

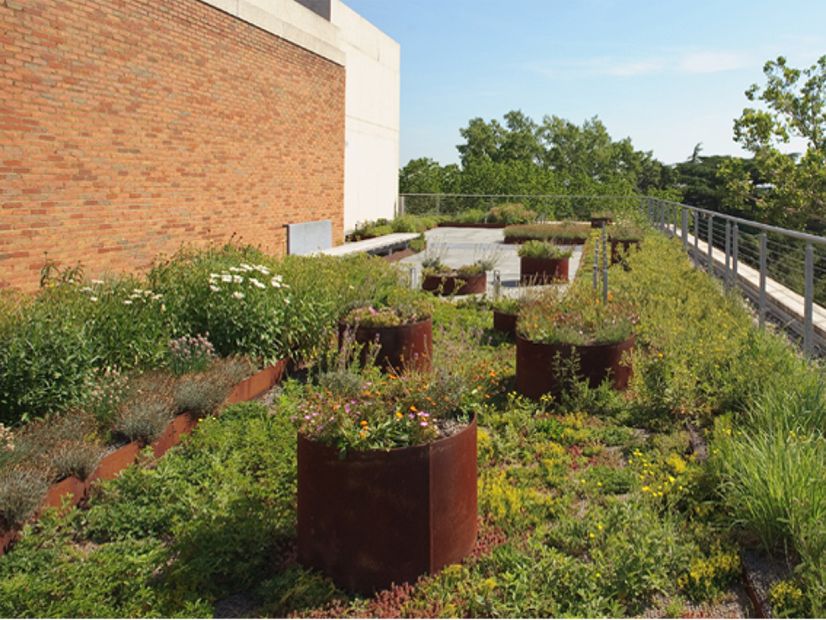

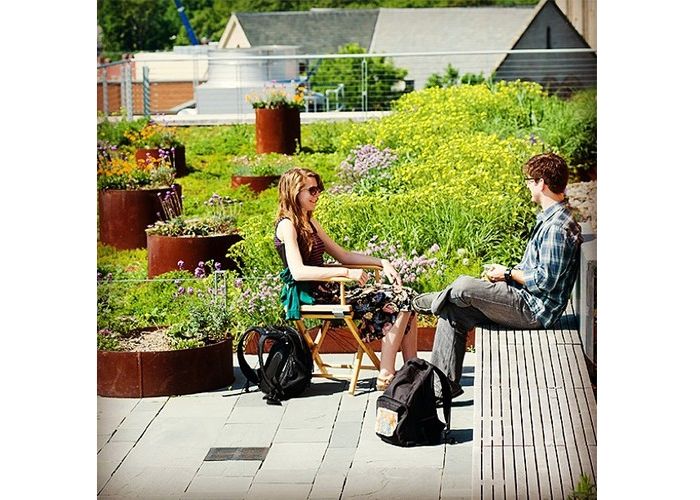

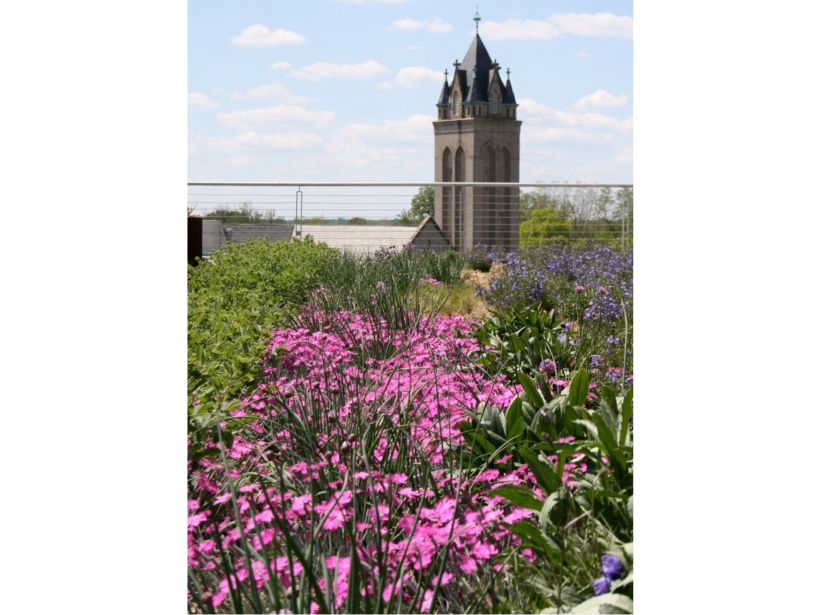

Designed by VMDO Architects with Siteworks Studio, the walkout terrace located on the 5th floor of the Pollak Building Visual Arts Building at Virginia Commonwealth University (VCU) serves as a living classroom and provides for an opportunity for the students and faculty to congregate outside. The roof illustrates three different types of green roof planting strategies and depths with conventional (3-4”), meadow (6”), and plants native (12”) to Virginia - the first such green roof in the Commonwealth.

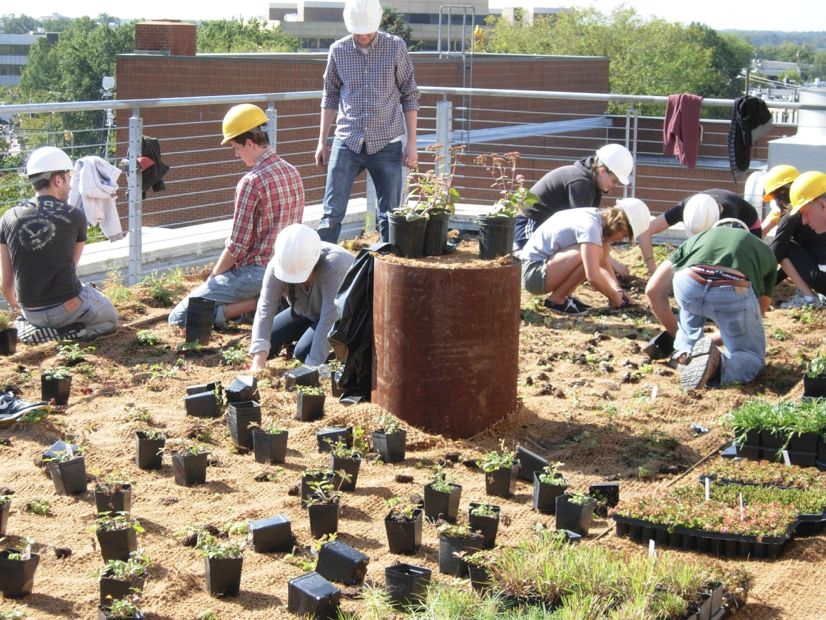

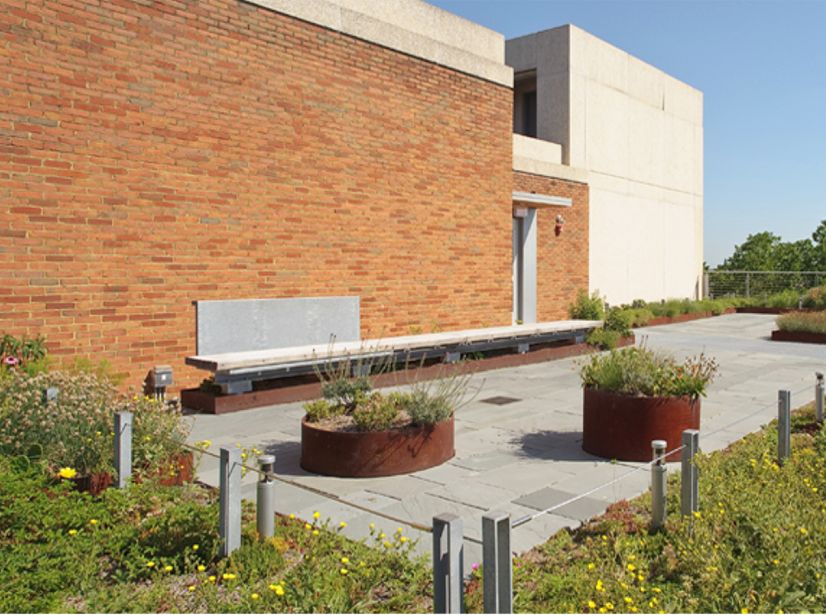

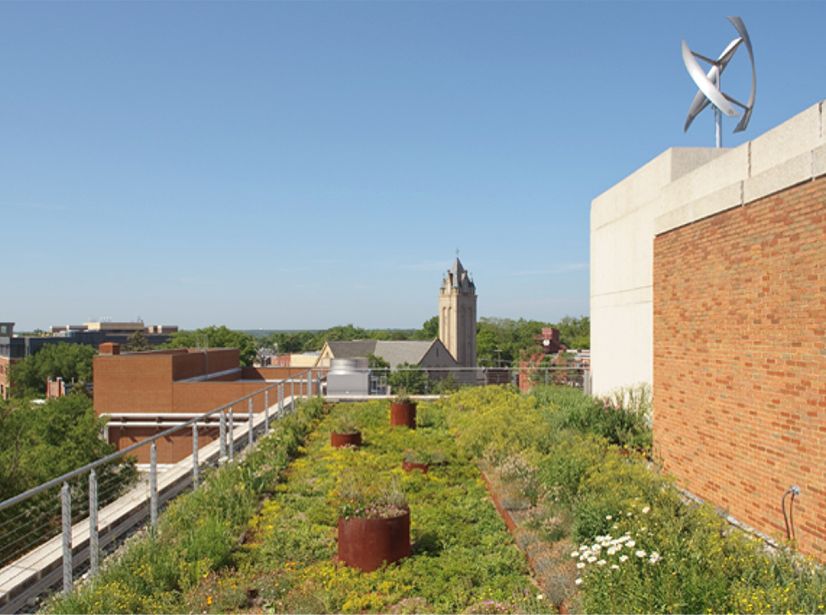

Installed by Capitol Greenroofs, the assembly utilizes a Carlisle Garden Roof with Optigreendrainage and growing media, provided by Conservation Technology, over an IRMA roof. Students from the VCU School of the Arts Department of Interior Design spent a day planting the perennials, grasses and succulents. Corten steel planters were placed randomly in the planting areas. Galvanized grating leads to a new handicap accessible entrance and a 1,500 sf Pennsylvania bluestone patio flanks either side of the grating. VCU installed a 16 foot tall Eddy GT, 1 kW vertical axis wind turbine on the top of the southeast stair tower on the Pollak Building in the spring of 2012 which can be seen from the greenroof.

Year: 2011
Owner: Virginia Commonwealth University
Location: Richmond, VA, USA
Building Type: Educational
Type: Extensive & Intensive
System: Custom
Size: 4,020 sq.ft.
Grade: 1%
Access: Accessible, Private
Designers/Manufacturers of Record:
General Contractor: Prestige Construction
Installation: Capitol Greenroofs
Plant Installation: 15 Students from the VCU Arts Department of Interior Design
VCU Arts Liaison: Camden Whitehead, Associate Professor of Interior Design
Architect: VMDO Architects
Membrane Assembly: Carlisle Garden Roof
Landscape Architect: Siteworks Studio
Drainage & Growing Media: Optigreen
Optigreen Supplier: Conservation Technology
|
|
|
