類別：
綠屋頂
|
|
|
作品名稱：
Caixa Forum Museum Vertical Garden |
|
發佈日期：
2015-11-25 |
|
作品說明：
Project Name: Caixa Forum Museum Vertical Garden
Year: 2007
Owner: Caixa Foundation
Location: Madrid, Spain
Building Type: Museum
Type: Living Wall
System: Single Source Provider
Size: 6458 sq.ft.
Slope: 100%
Access: Accessible, Open to Public
Submitted by: Greenroofs.com & PRONATUR
Designers/Manufacturers of Record:
Architect: Herzog & de Meuron
Greenwall Designer & Installation: Patrick Blanc
Greenwall System: Le Mur V嶲彋al
General Contractor: Ferrovial Agroman
Greenwall Consultant: Benavides & Lap鋨che
Irrigation Installation & Maintenance: Isla Verde
Acquired by the Caixa Foundation in 2001, the Caixa Forum Museum is a modern art gallery and a refurbished 1899 power station. Located on the Avenida Prado across from the Prado Museum and botanical gardens, and in close proximity to the Reina Sofia and the Thyssen-Bornemisza Museums, exhibitions feature works from the foundation's permanent collection (some 700 pieces by artists from the 1980s to the present), as well as temporary displays from other museums and foundations.

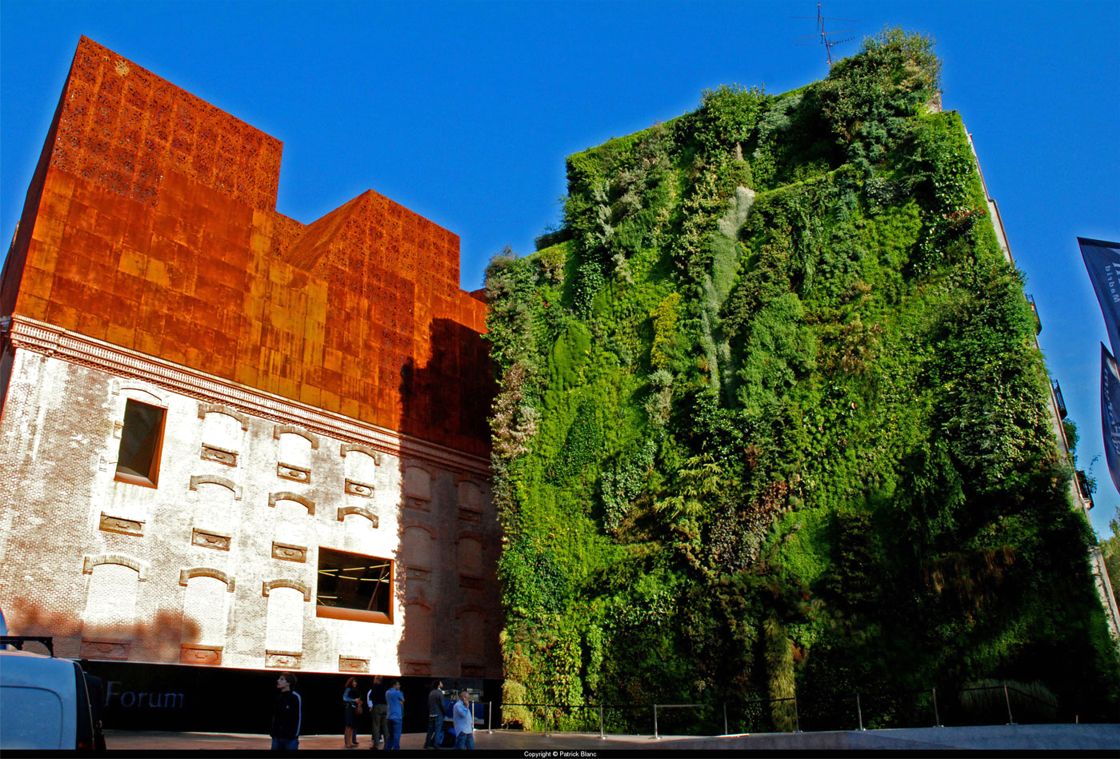

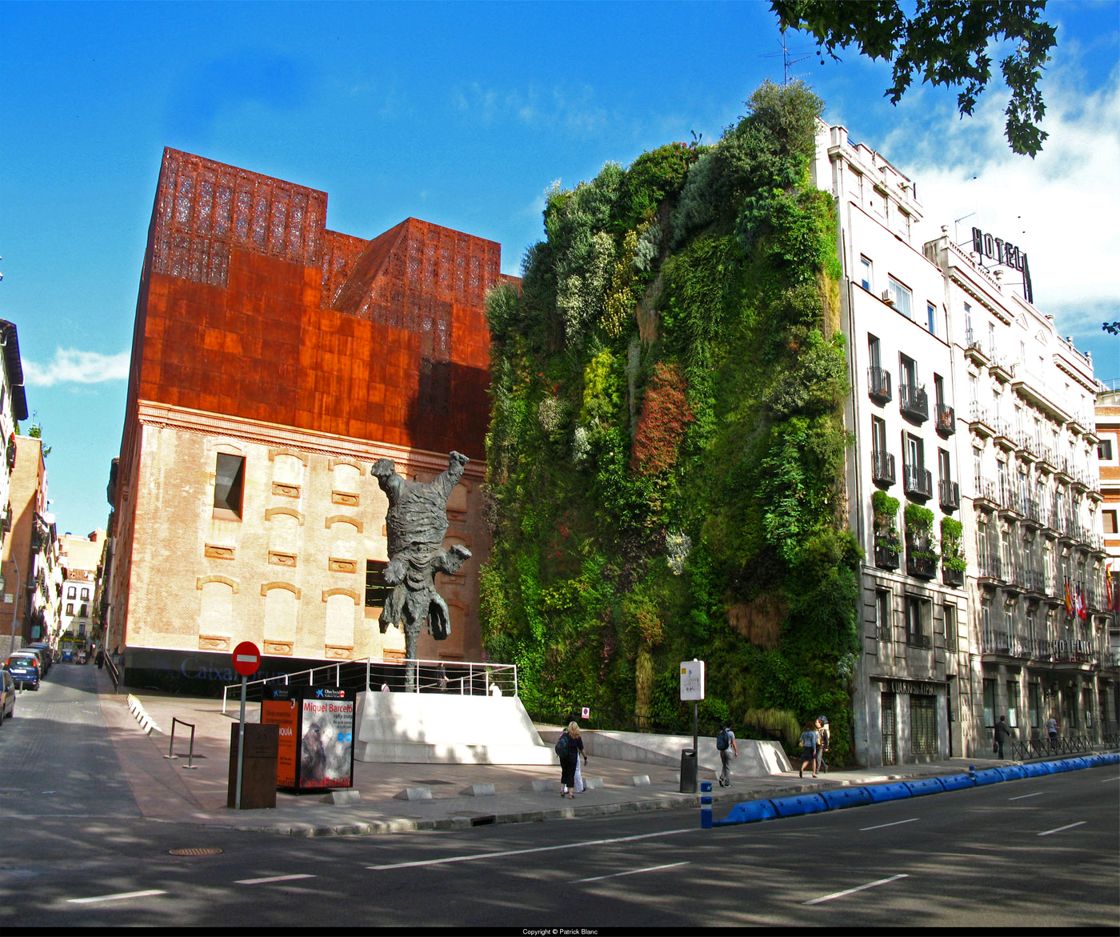

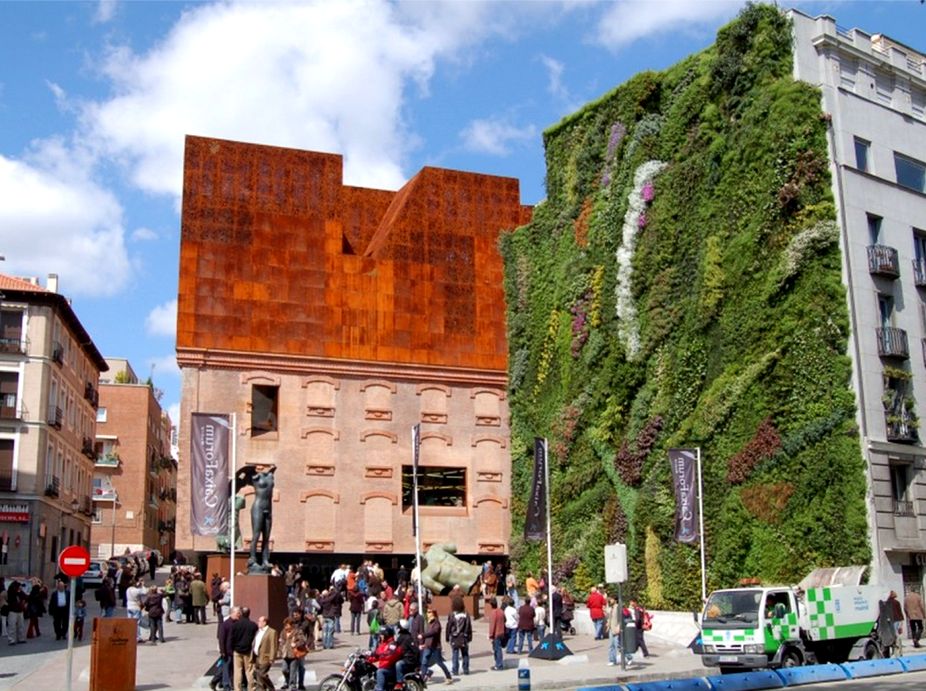

Situated in the heart of the Madrid's cultural district, the Caixa Forum Museum vertical garden was designed and created by Patrick Blanc using his Le Mur V嶲彋al system. The adjacent square is accessible to the public who can walk up to the hydroponic living wall to touch and explore over 15,000 plantings. Nearly 300 different species were chosen by Patrick Blanc who had to keep in mind Madrid's very demanding seasons - very hot in the summer and cold in the winter.

Using Patrick Blanc's Le Mur Vegetal system, the set up starts with a sheet of polyurethane, plastic mesh and a non-biodegradable felt-type blanket with pockets which are used to pot the plants. The plant roots develop extremely well and the total vertical garden weight is estimated at 30 kilos per square meter.
The exact number of plants within the living wall is unknown due to replacements and changes of species over the years. The figure is between 15,000-17,000 plants, which depends on season and selected varieties adapted to the region. Species include Dianthus deltoids, Lonicera nitida, Yucca filamentosa, Cistus purpureus, Cedrus deodara, Pilosella aurantiaca, Arenaria montana, Bergenia cordifolia, Cornus sanguinea, Lonicera pileata, Sedum alpestre, Campanula takesimana, Garrya elliptica, and different Begonias.

Since the building where the wall is located does not belong to Caixa Forum, special care has been taken to avoid moisture problems by contact or condensation. The polyurethane sheet is anchored to the wall of the building, leaving a gap that allows passage through its interior for monitoring of the irrigation and fertilization system, which is zoned at different heights. It constitutes a network of pipes arranged in layers with emitters, fed by a pump. Irrigation is vertical and layered, using gravity, wetting the wool and spreading by plants; all of this is automated.
The runoff that occurs along the leaves and stems can cause water loss - at ground level, there is a recovery system and subsequent recirculation which continues to be tweaked. Remember that the climate of Madrid is very demanding, and a failure of water in the summer may cause the loss of many plants.

|
|
|
